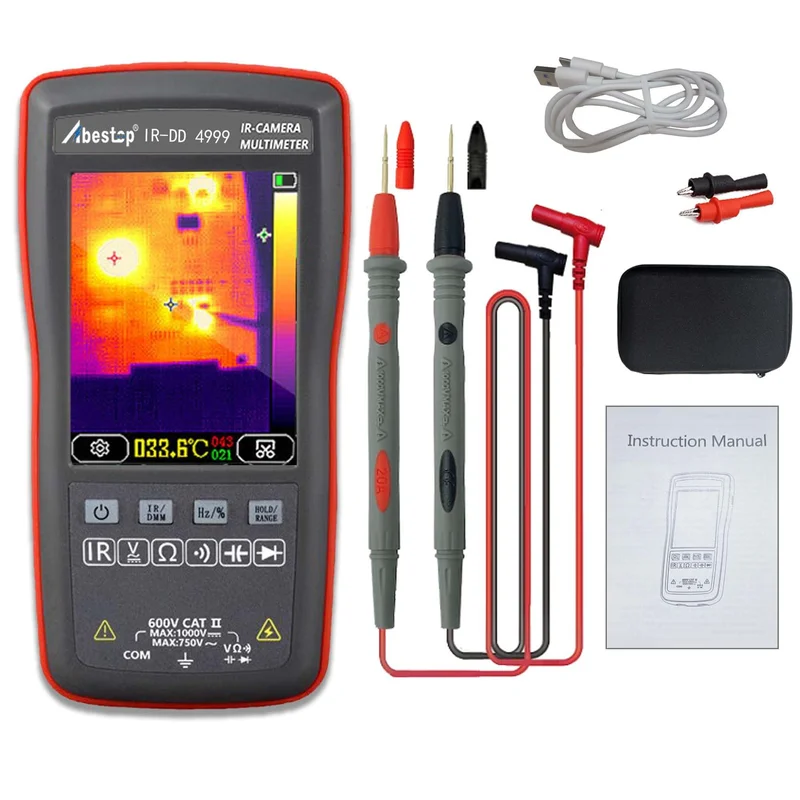

2 in 1 Thermal Imagers with Multimeter Function 90 x 120 Thermal Imaging Pixels 2 Color Palette 4000 Counts Display(20Hz Image Capture Frequency)-Fast Shipping

Description

Portable: Small size(134 mm x 69 mm x 25 mm), light weight(device:125g), 2.8 inch resistive touch screen, built-in battery, easy to carry and use

Thermal Imager: Thermal imaging images can be saved and can be viewed locally. Thermal imaging image with computer software can realize temperature reproduction function

UFPA sensor; Image capture frequency: 20Hz; Thermal imaging pixels:1080090×120; Field of View (FOV): 55°(H) x 35°(V); Emissivity: 0.10.99 adjustable,(0.95 by default); Temperature range: -20 ~ +400

Support AC/DC voltage, resistance, capacitance, diode, on/off test, frequency, duty cycle; Max DC input voltage: 1000V; Max AC input voltage: 750V; Max resistance: 40M; Max capacitance: 100uF; Duty cycle test range: 0.1% ~ 99.9%; Diode test range: 0V ~ 1.5V; Continuity test: 30; Display: 4,000 counts, Updates 6/sec

The multimeter can switch automatic gear measurement and manual gear measurement; Support data waveform recording and saving function, work with the upper computer software can realize the voltage waveform reproduction function
