CHANCS High Torque High Power CH-3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with Fixed Seat-Fast Shipping

Description

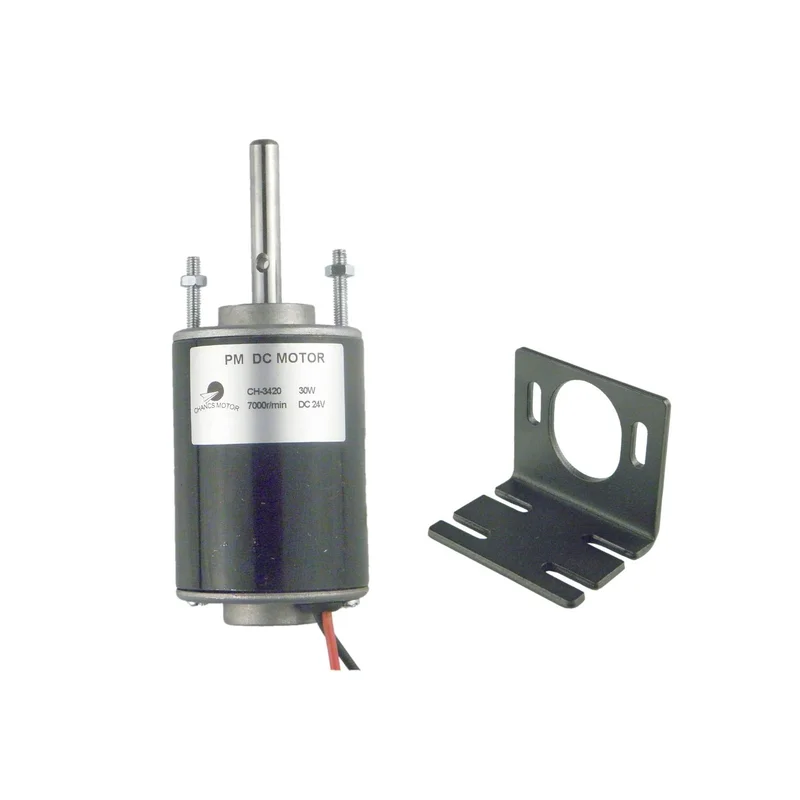

*This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It’s all-metal construction, so it’s strong and durable. Provide two threaded screw outlet for easy connection.

*The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPM Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Common Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 45mm, Rotation:CW/CCW.

*The motor can be combined with a drill chuck or a connecting rod to form a drill or a is quieter and lasts longer compared to the 775 DC motor.

*The specification of bracket: Length: 57.5mm; Width:41mm; Height: 51mm; The measured size data may be subject to some errors.

*Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.

*Package : 1 x DC Motor,,1 xBracket
