Description

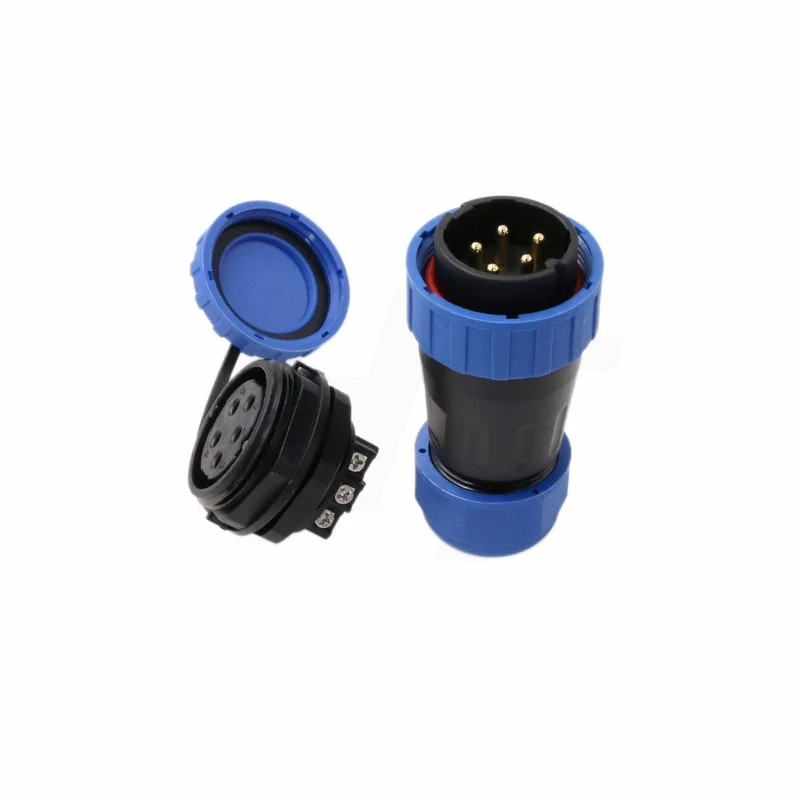

TY28 5-pin waterproof free-solder screw crimp bulkhead connector, easy for assembly cable
Features Waterproof IP68, threaded coupling, quick disconnect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance
Rear panel mount female socket and cable plug with watertight cap
Rated Voltage/Current AC 380V / 25A, Contact resistance 1m, Insulation resistance 2000m. Suitable wire outer diameter range 10-15mm, Wire gauge 4mm² or 12AWG, Contact Diameter 2.8mm
Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment
