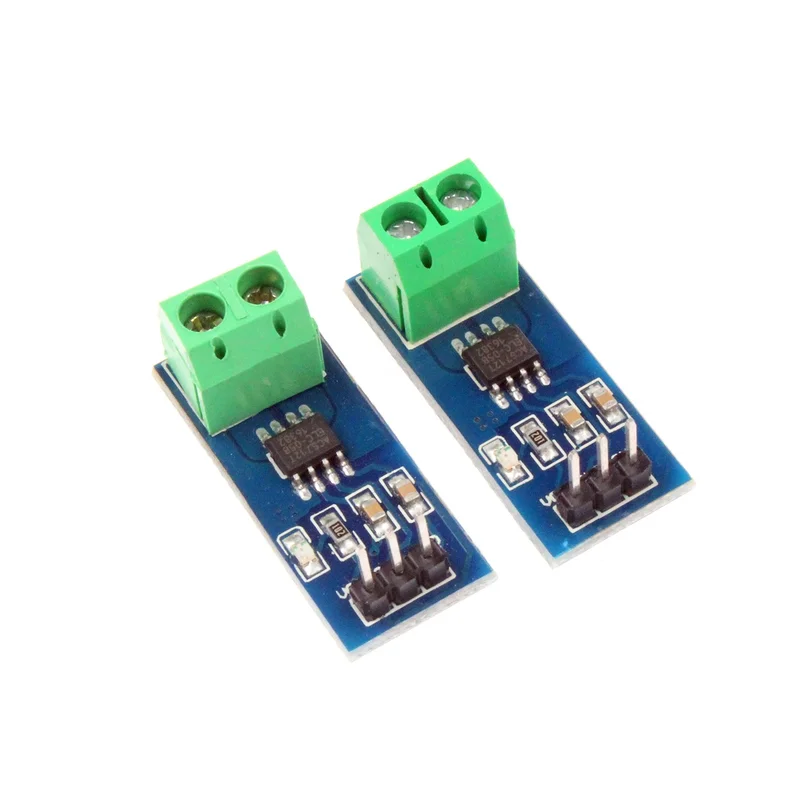

NOYITO ACS712 Current Sensor Module Detector ACS712ELC 5A 20A 30A Amps Amperage Range (Pack of 2) (30A)-Fast Shipping

Description

Current sensor chips: ACS712ELC-5A / ACS712ELC-20A / ACS712ELC-30A [There are three specifications for the product 5A / 20A /30A. You can choose the specifications according to your needs.]

Pin 5V power supply, on-board power indicator;

The module can measure range 5 / 20 /30 amps, corresponding to the analog output 100mV / A;

No test current , the output voltage is VCC / 2;

PCB board size: 31 (mm) x13 (mm)[One package contains two products with the same parameters.];
