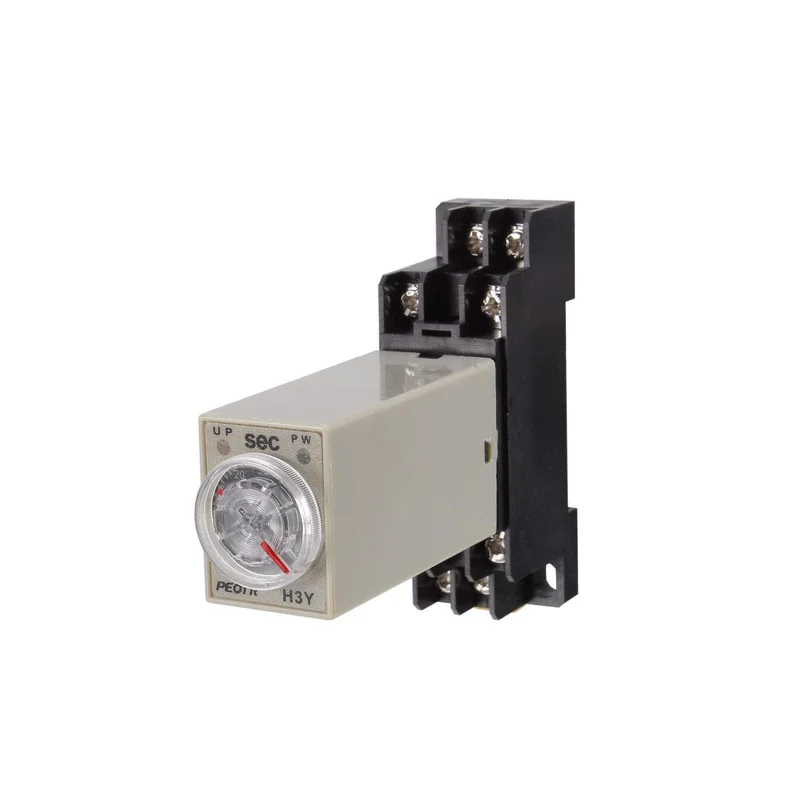

uxcell H3Y-2 24VDC DPDT 60 Seconds 8P Terminals Delay Timer Time Relay w Base-Fast Shipping

Description

Product Name : Time Relay + Socket;Type : H3Y-2;Contact Type : DPDT

Source : DC 24V;Contact : 5A 250VAC Resistive Load;Time Range : 0-60 Seconds

Number of Terminals : 8;Mount Rail Type : 3.5mm DIN Rail;Fixing Mount Hole Size : 6 x 4mm/ 2.4″ x 0.15″(L*W)

Fixing Mount Center Hole Distance : 57 x 15mm/2.2″ x 0.6″(L*W);Total Size (Approx.) : 68 x 22 x 88mm/ 2.7″ x 0.9″ x 3.5″(L*W*H);Color : Black, Gray

Net Weight : 67g;Package Content : 1 x Time Relay,1 x Socket
